BUNDLE FELFIL EVO & SPOOLER+

BUNDLE FELFIL EVO & SPOOLER+

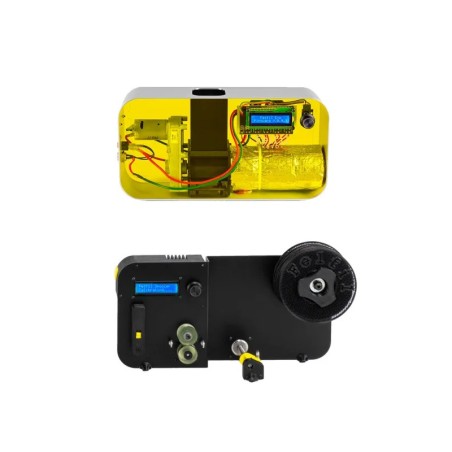

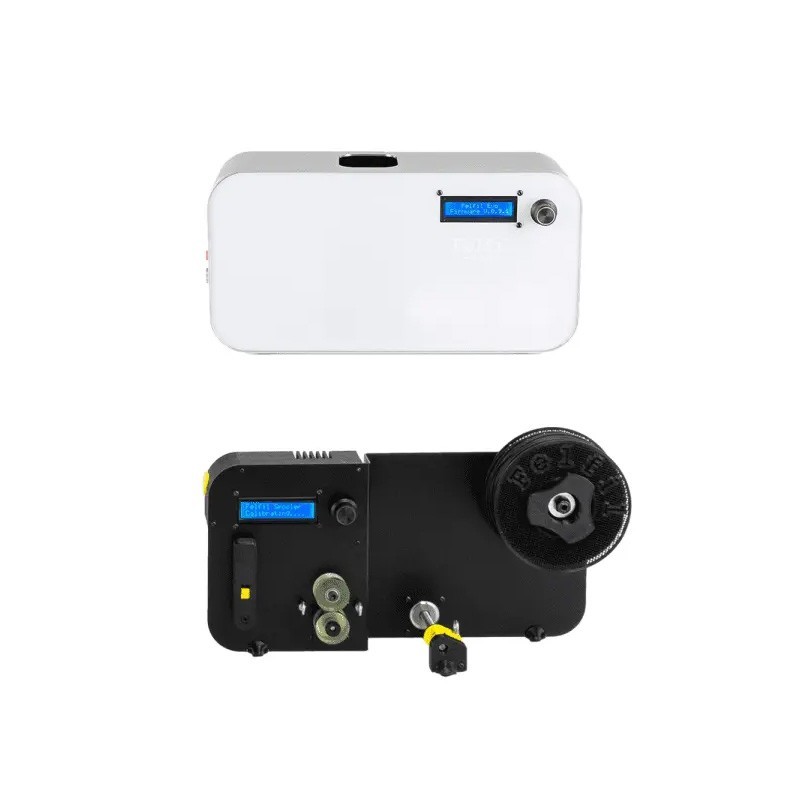

The Felfil EVO & Spooler+ Bundle is a complete desktop filament production system designed to transform plastic pellets or recycled plastic into high-quality 3D printing filament. By combining the Felfil EVO extruder, the cooling system, and the automatic Spooler+, the bundle allows you to manage the entire extrusion process directly from your laboratory, office, or makerspace.

It is the ideal solution for makers, universities, research centers, laboratories, and companies looking to produce custom filaments, experiment with new materials, or recycle plastic waste from failed or discarded 3D prints, contributing to a more sustainable manufacturing process.

Produce Your Own Filament with Complete Independence

With Felfil EVO, you can extrude filament directly from virgin plastic pellets or previously shredded recycled plastic. The Spooler+ automatically monitors the filament diameter and adjusts the winding speed to produce a uniform, consistent spool, reducing material waste while improving the quality of the final product.

The system is highly versatile, making it suitable for both standard filament production and experimentation with custom blends and composite materials.

Wide Material Compatibility

The Felfil EVO & Spooler+ Bundle supports a wide range of thermoplastic materials, including:

• PLA
• ABS
• PETG
• HIPS
• PA (Nylon 6 and Nylon 12)
• PMMA
• HDPE
• LDPE
• TPU
• TPE
• PVA
• and a variety of composite materials.

High Performance

• Filament production rate of up to 100–150 g/hour, depending on the processed material.
• Adjustable screw speed from 1 to 9 RPM.
• Maximum extrusion temperature of 250°C, or 300°C in the high-temperature version for advanced polymers.
• Produces filament diameters ranging from 0.5 mm to 3.0 mm.
• Interchangeable nozzles for 1.75 mm and 2.85 mm filament.
• High-precision diameter sensor with an accuracy of 10 microns.
• Custom-designed steel extrusion screw featuring a conical profile and a 12.7 L/D compression ratio.

Precise Diameter Control

The high-precision sensor integrated into the Spooler+ continuously measures the filament diameter during production. The control software automatically adjusts the winding speed to maintain a consistent filament diameter, ensuring reliable performance and compatibility with most FDM 3D printers.

Package Contents

• Felfil EVO Filament Extruder.
• 2 interchangeable nozzles.
• Felfil Spooler+.
• Cooling fan system.
• Material sample (approximately 250 g) for your first extrusion.
• Power supplies and power cables.
• USB cable.

The included material sample allows you to start extruding immediately and become familiar with the system before processing your own materials.

Why Choose the Felfil EVO & Spooler+ Bundle?

• Complete desktop filament production system.
• Ideal for plastic recycling and custom filament manufacturing.
• Compatible with a wide range of thermoplastic materials.
• Automatic diameter control and precise filament winding.
• Compact design, perfect for laboratories, schools, universities, makerspaces, and industrial environments.
• Produce professional-quality filament independently and on demand.
